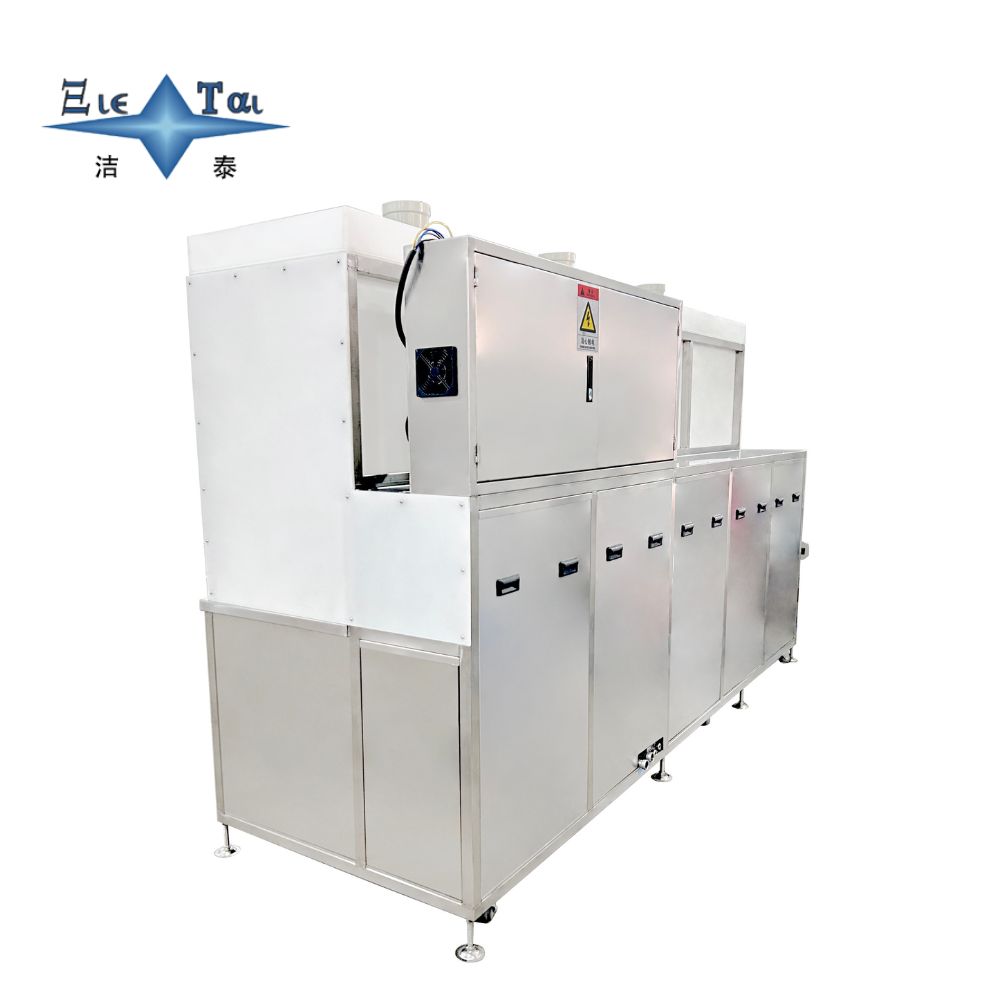

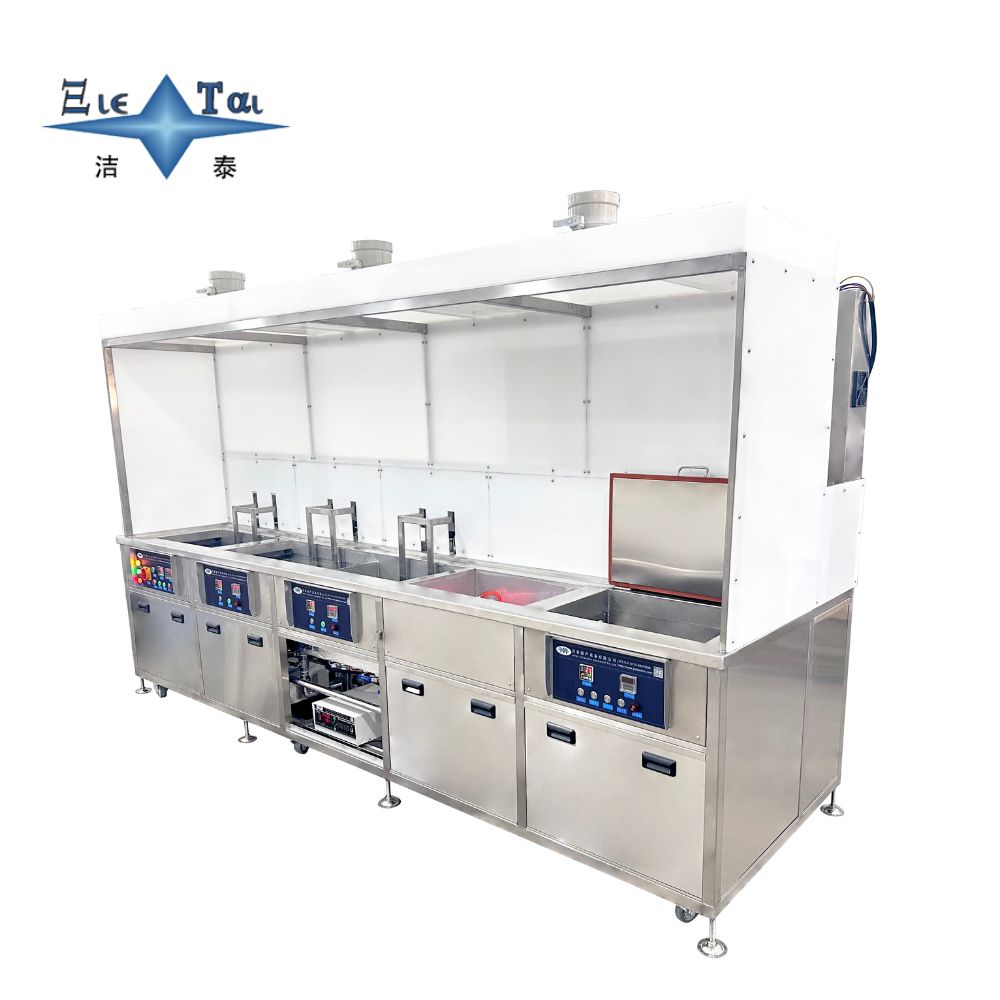

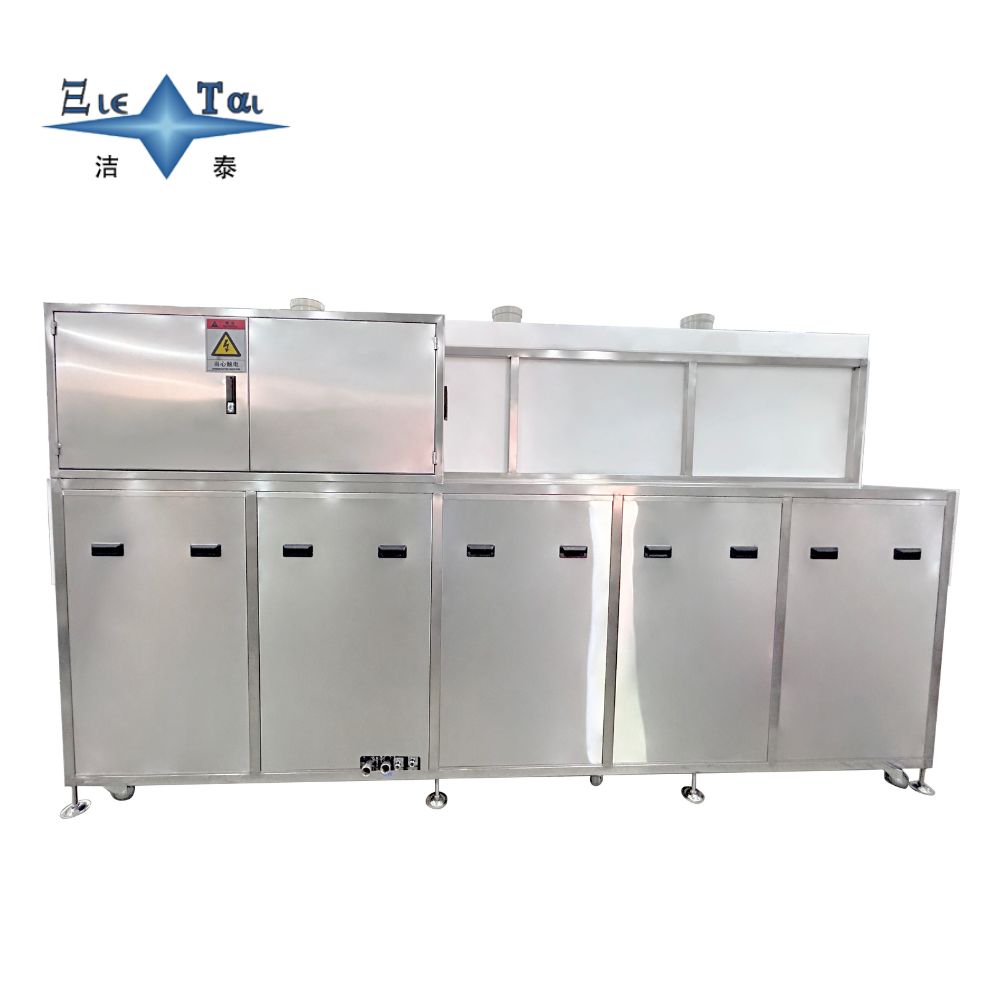

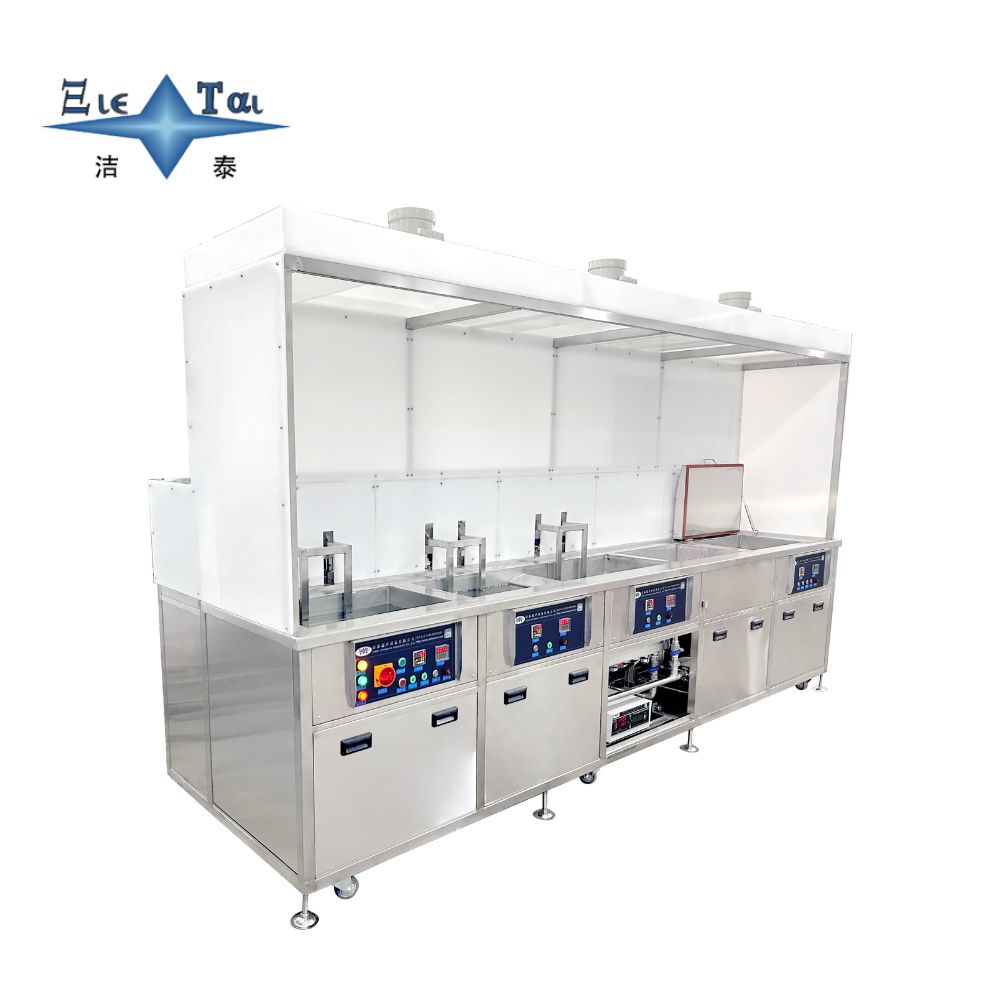

Manual Ultrasonic Cleaning Machine with Oscillation Agitation and Dust-Proof Exhaust Hood

JTM-50108FD 5-tank manual ultrasonic cleaning machine is equipped with oscillation agitation and dust-proof exhaust hood. Adopting industrial standard 40KHz ultrasonic frequency, it integrates ultrasonic cleaning, rinsing, air knife drying and hot air drying processes. The built-in oscillation agitation structure enhances the disturbance of cleaning fluid to efficiently remove dust, cutting oil, polishing residues and fine particulate contaminants from workpiece surfaces. The enclosed dust-proof exhaust hood prevents the leakage of volatile mist and dust during operation to improve the workshop working environment. With a maximum working temperature of 60℃ and constant temperature control system, the equipment ensures stable cleaning quality for batch production. Its overall dimensions are 4.8M1.5M2M, total power 30KW and net weight 1000KG. Designed with manual operation stations, the machine features flexible operation, ideal for small and medium-batch precision cleaning of optical components, precision hardware and 3C parts. It effectively avoids watermark residue and secondary pollution, providing reliable high-cleanliness pretreatment for subsequent coating, assembly and spraying processes.
