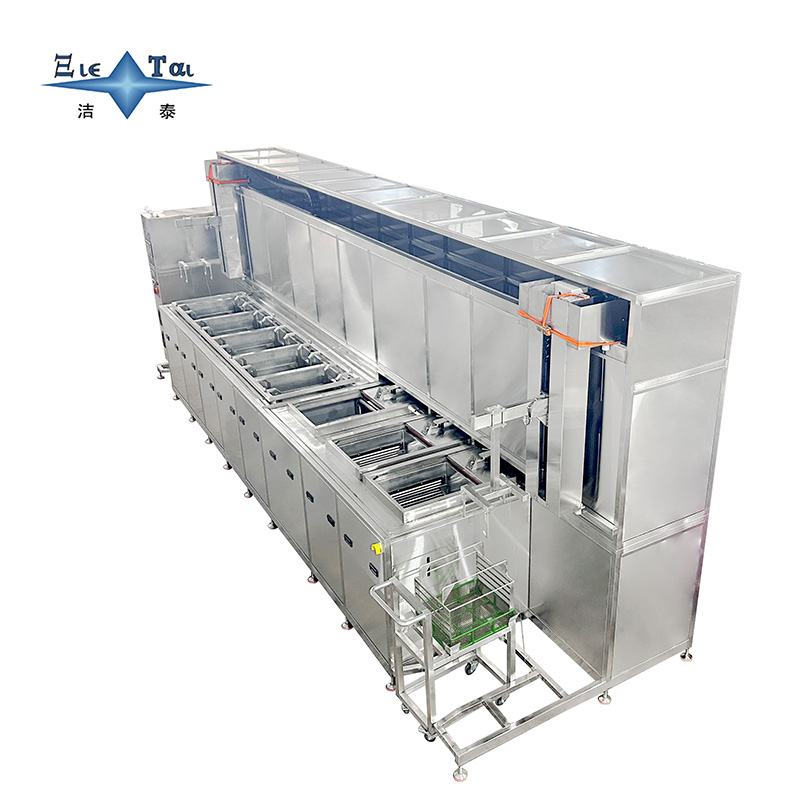

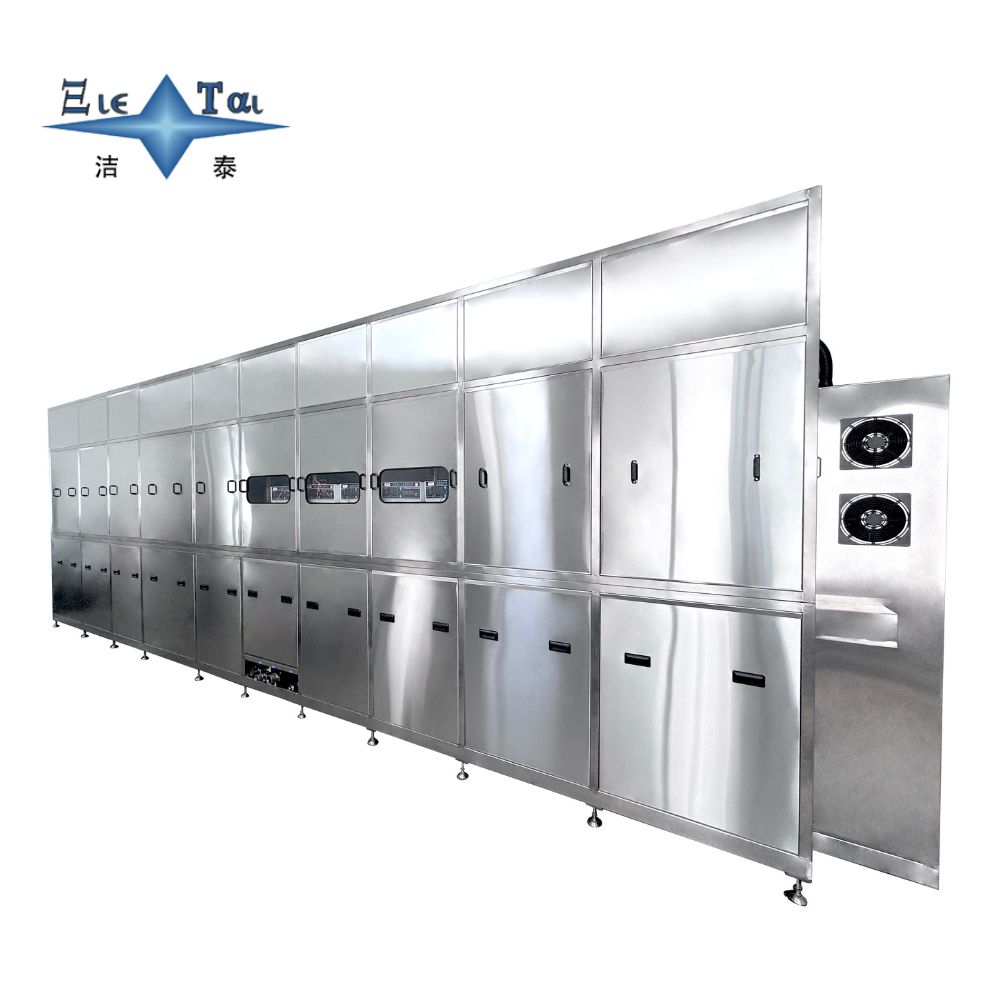

Fully Automatic Ultrasonic Cleaning Machine
JTM-4036DJ Electrolytic Ultrasonic Cleaning & Drying Machine for Injection Molds
4-tank unit with 40KHz ultrasonic frequency, 60℃ constant temperature, 30KW power, size 2.7M1M0.9M, weight 600KG. It integrates electrolytic ultrasonic cleaning, air blow-off, anti-rust soaking and hot air drying. Electrolysis paired with ultrasonic cavitation strips carbon deposits, release agent and oxide layers in one load, restoring mold smoothness, preventing sticking and extending mold lifespan.
product details
| Industry | CNC Machined Hardware Parts Industry |
| Product Name | Fully Automatic Ultrasonic Cleaning Machine |
| Model | JTM-80120AD |
| Process Configuration | Ultrasonic Cleaning + Air Knife Water Blowing + Hot Air Drying |
| Cleaning Frequency | 40KHZ |
| Max Cleaning Temperature | 60℃ |
| Number of Tanks | 8 |
| Overall Dimensions | 7.5M*1.8M*2.6M |
| Price | 350,000 CNY |
| Net Weight | 4000kg |
