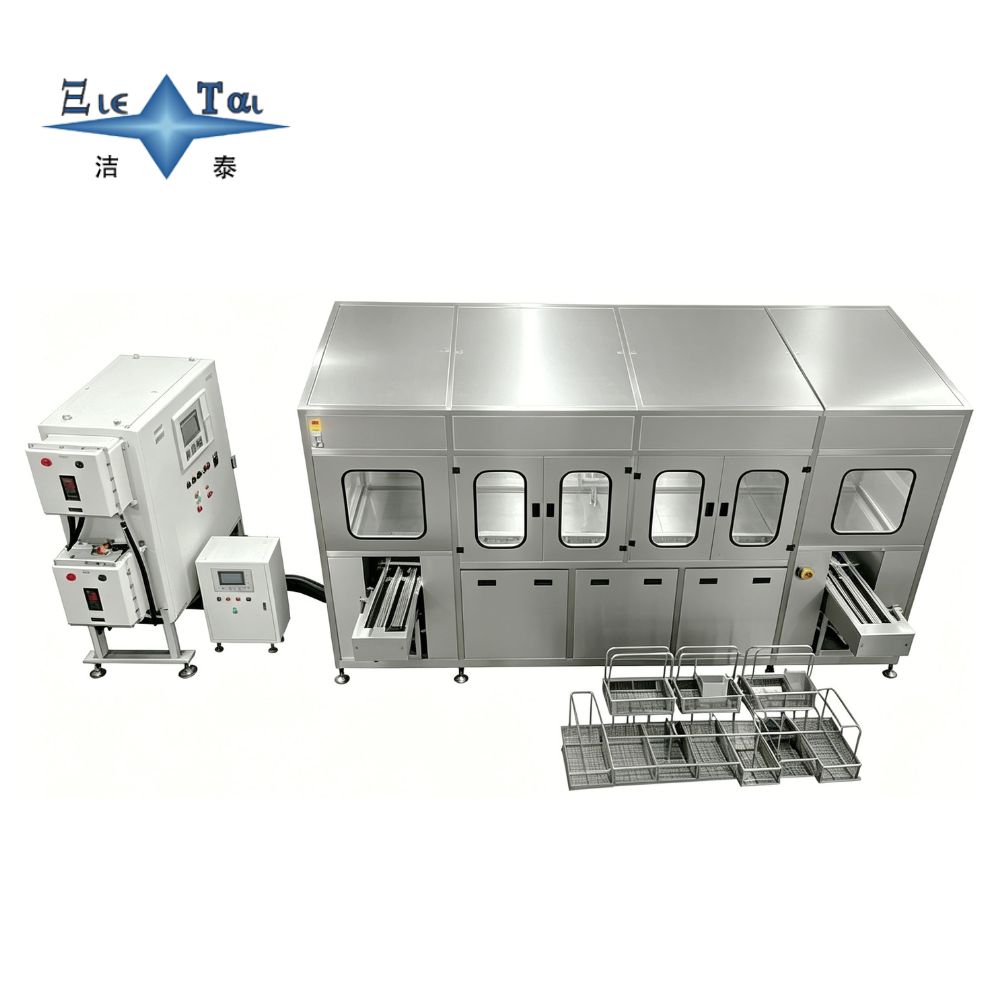

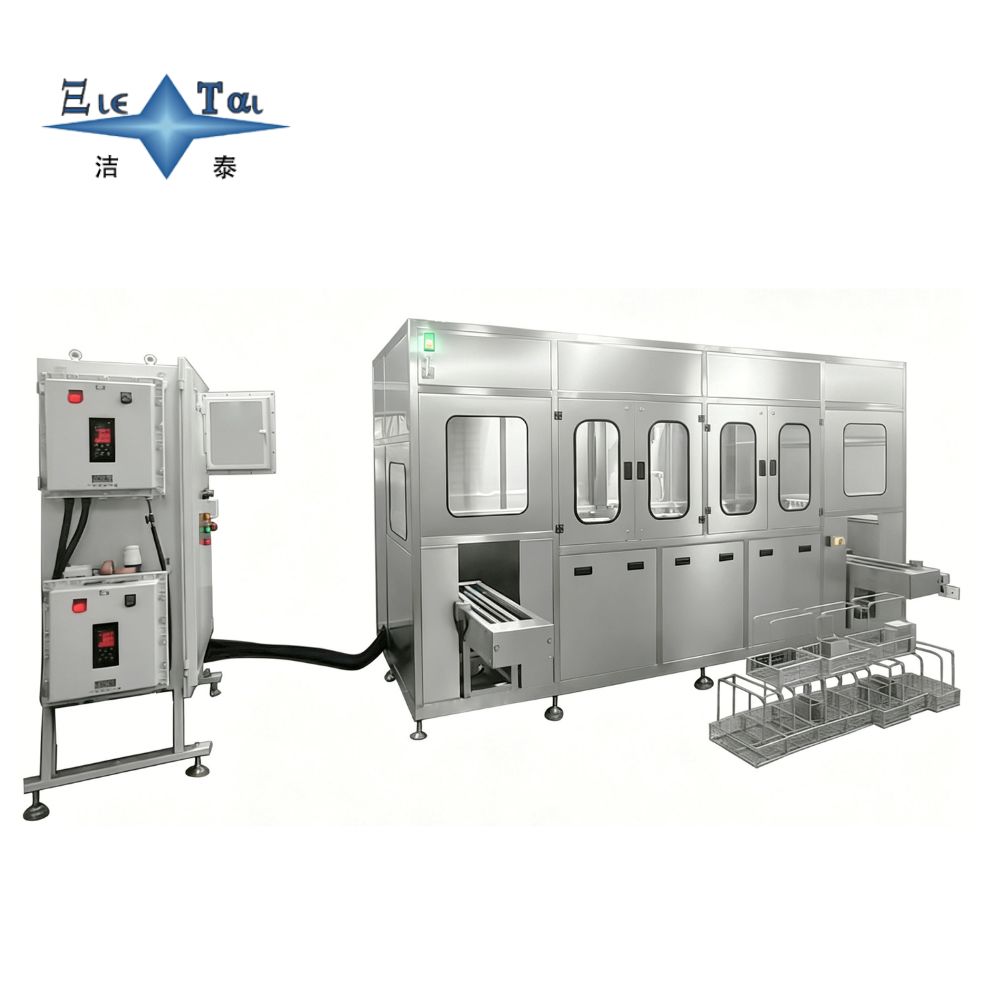

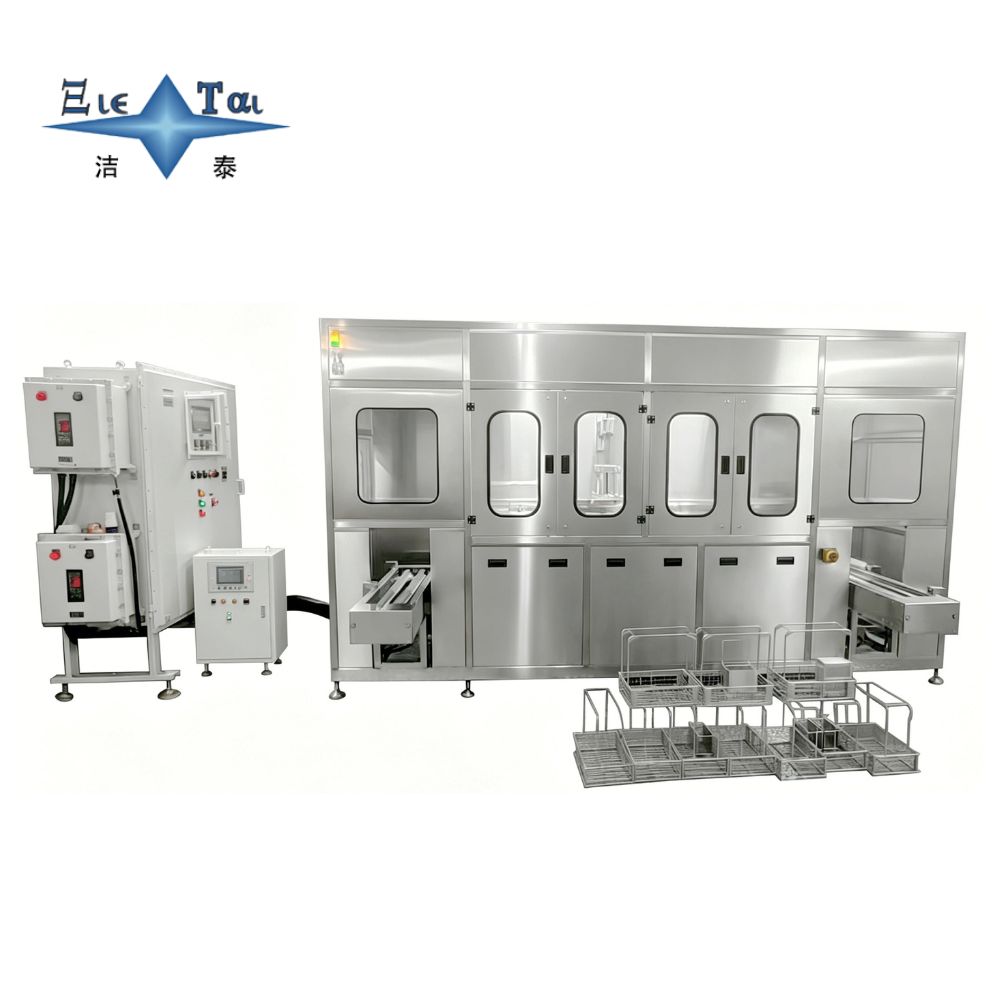

Fully Automatic Explosion-proof Ultrasonic Cleaning System

JTW-4096AD 4-tank fully automatic explosion-proof ultrasonic cleaning system adopts industrial standard 40KHz ultrasonic frequency, integrating ultrasonic cleaning and IPA dehydration processes with a maximum working temperature of 60℃. Equipped with full set of explosion-proof electrical components, it is applicable to cleaning scenarios using flammable organic solvents such as acetone and isopropyl alcohol. Stable ultrasonic cavitation efficiently removes grease, micro-particles and organic residues on precision workpieces, while IPA solvent displacement dehydration avoids watermark residue inside blind holes and slits to prevent oxidation and surface defects. Featuring automatic 4-station gantry transmission, the machine has overall dimensions of 4.5M1.6M2.5M, total power of 40KW and net weight of 2000kg. All electrical parts including driving units, heaters, controllers and sensors adopt explosion-proof design, equipped with multiple safety protections like leakage monitoring, overload protection and anti-static grounding. It is widely used for solvent precision cleaning of optical components, 3C parts and precision hardware under hazardous environments, ensuring high cleaning cleanliness while eliminating potential safety risks brought by flammable and combustible solvents.
